9 Steps to Sizing Rough LumberHardwood lumber yards offer you wood either rough or surfaced. Rough is how it’s cut from the log at the sawmill. There they use giant band saws and circular saws with very coarse saw blades, so the work happens fast. Rough lumber looks like it was sanded with a garden rake! Buying it rough, and then surfacing it yourself has many advantages over buying it S4S (surfaced four sides). You are in control, and you “size” your boards so they are perfect. Building projects with truly flat, straight, and square pieces of wood is vastly easier than trying to shoehorn together warped and twisted pieces, and you will save lots of money by doing the surfacing work yourself. The downsides you ask? It takes much more time, you need some machinery that you may not already own, and you end up with huge piles of shavings that you have to get rid of. My feeling is the benefits greatly outweigh the negatives.

A quick overview of the steps is as follows: Rough cut the length, then the width. Flatten a face, then plane to thickness. Cut the finished width, then cut the finished length.

Machines You Need:

– Power miter saw or radial arm saw with a crosscut blade

– Jointer

– Table saw with a rip blade

– Planer

Your machines need to be well tuned. Test your setups, and check your results during the machining for flatness and square.

how to buy a table saw guide

Before You Start Tips:

– Look for straight and flat rough boards when you purchase your lumber. Bowed, warped, and/or twisted rough boards are hard to machine, and boards with those problems usually indicate the wood is unstable.

– Buy your rough lumber 1/4″ thicker than your finished thickness. In lumberyard terms, that means buy 4/4 to finish at 3/4″, or 5/4 to finish at 1″.

– Flattening boards for pieces that have very long finished lengths may require starting with 1/2″ thicker rough boards. This will allow you to make a few extra passes on the jointer to flatten one face, and still have enough to finish the thickness.

– I pay more and buy the best-graded lumber. I find it easier to work with, and it produces the greatest yield with the least amount of waste. A good rule of thumb is to add 50% for waste to the total finished square footage.

– Don’t size your rough lumber until you’re ready to use it. Most sized wood that sits around awhile has a tendency to distort.

Analyze your cutting list, and give the highest priority to the longest and widest pieces. Usually the rest of the pieces are easily cut from the wood that remains. Keep in mind that the edges on short pieces are much easier to joint than the edges on long pieces; so whenever possible, rough crosscut the lengths of your pieces first before you start edge jointing. Use rough boards that are at least 1/2″ wider than your finished widths. Watch for defects and cut around them. Don’t machine pieces that are less than 12″ long. That’s too dangerous.

These days when I’m jointing, I find it best to remove only 1/32″ at a time. Yes, that does mean many more passes to flatten board edges and faces, but the tear out is greatly reduced this way, so I feel it’s worth the extra work.

My last word of advice… Don’t skimp. It never fails, every time I try and squeeze a finished piece out of a rough piece that’s really not big enough, I end up having to start over, and all I’ve done is waste time and wood!

CAUTION: I removed my saw guard for the table saw photos. Please use yours.

9 Steps to Sizing Rough LumberLet’s Size Some Wood:

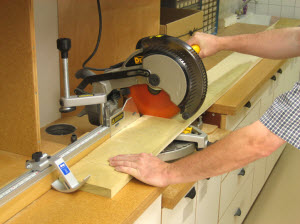

1) Rough crosscut your rough lumber.

Start by cutting an end to remove any end checks. I cut successive 1″ chunks off an end until the last cut off piece can’t be broken when flexed by hand. Once the first end in good, then cut the piece’s rough length 1″ longer than its finished length. Make the crosscuts using a miter saw or radial arm saw. The extra 1″ is added so when you’re cutting the finished length later, you don’t leave a thin piece of wood that can get jammed between the saw fence and blade.

9 Steps to Sizing Rough Lumber

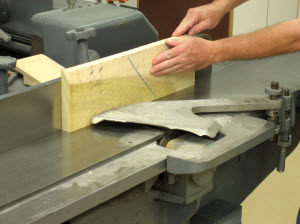

2) Joint and straighten one edge. Set your joiner fence at 90 degrees, and the cutting depth to 1/32″. Make multiple passes until the first edge is clean. Orient the board so the ends of the board touch the jointer table, not so it rocks on a high point in the center, and so the grain direction of the board is pointing down and away as shown by my blue crayon line.

9 Steps to Sizing Rough Lumber

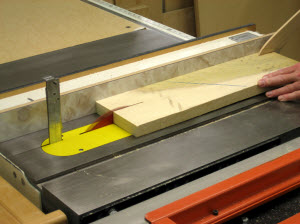

3) Rip the rough width 1/4″ wider than the finished width. Run the jointed edge against the fence and rip the board. This board will yield me two 2-1/4″ x 18″ pieces. A good ripping blade makes the sawing easy.

9 Steps to Sizing Rough Lumber

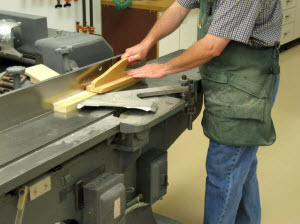

4) Joint one face of the board flat. Set the depth of the cut to 1/32″. Don’t force a warped board flat as you joint it. Instead, remove high spots of the stock with several passes until the entire face has been flattened.

9 Steps to Sizing Rough Lumber

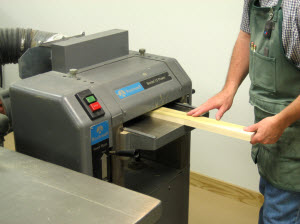

5) Plane the board to its finished thickness. A thickness planer is used for this task. Flip the boards over each time you make a thinner cut. This removes equal amounts from each face and helps maintain the overall flatness. NOTE: My planer is variable speed, so I cut at a fast rate until the board is 1/8″ thicker than its finished thickness, then I slow the feed rate down and cut the last 1/16″ off each face.

9 Steps to Sizing Rough Lumber

6) Joint one edge square. Make sure your jointer fence is set at 90 degrees and the depth of cut is set to cut 1/32″.

9 Steps to Sizing Rough Lumber

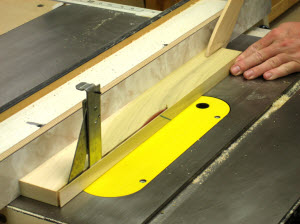

7) Rip to the finished width plus 1/32″. Run the jointed edge against the fence. After the board is ripped go back to your jointer and clean up the freshly sawn edge.

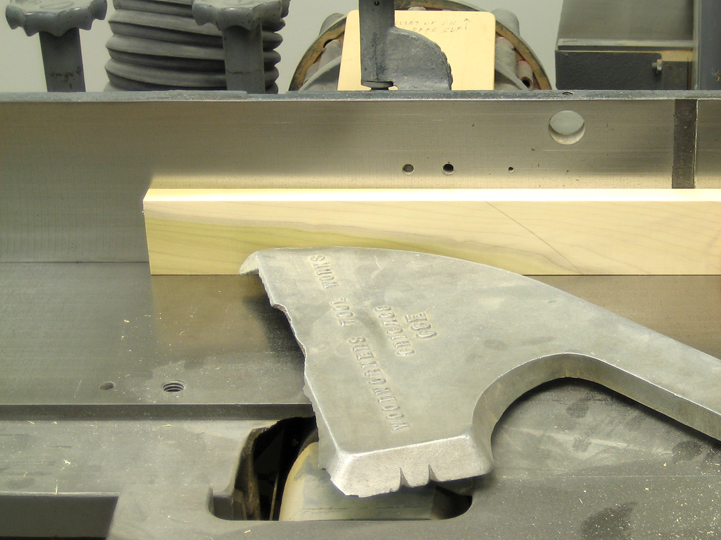

step 8

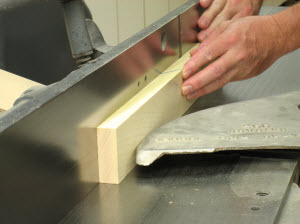

8) Joint the ripped edge to remove the last 1/32″.

9 Steps to Sizing Rough Lumber

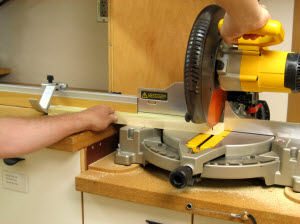

9) Square the ends. Start by trimming one end square, flip the piece around, measure and mark the finished length, and then cut to length and square the other end.

That’s all there is to it. Perfect boards every time with very little waste.
