Using a Keyhole BitIf you’re looking for a hardware-free way to hang picture frames or plaques on the wall, you need a keyhole router bit. Set up is simple, and results are great.When I make a picture frame or plaque, my preference for providing a way to hang it on the wall is to use a keyhole router bit. I like the fact that I don’t need to go shopping for hanger hardware, and the slot provided by the keyhole bit allows the item to hang right against the wall, not stand off by the thickness of the hardware.

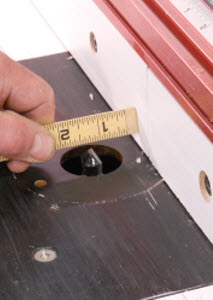

Using a Keyhole BitRouter Table Set Up. Use a V-bit, not the keyhole cutter, to set up your router table.Measure from the point of the V-bit to the fence to locate the keyhole slot. I typically place the slot 1-1/4″, on center, from the edge. Lock the fence in position.

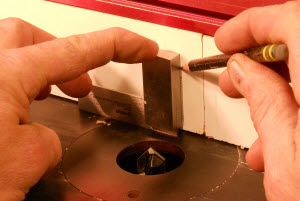

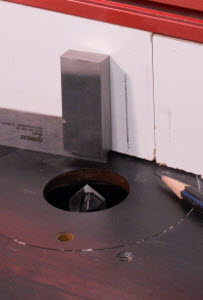

Using a Keyhole BitUse a square to transfer the location of the center of the bit to the face of the fence.

Using a Keyhole BitSquare a line up the face of the fence, located on the mark you made in the previous step.

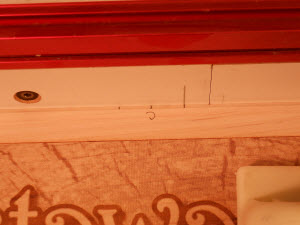

Using a Keyhole BitNow you know where the center of the keyhole bit will be.

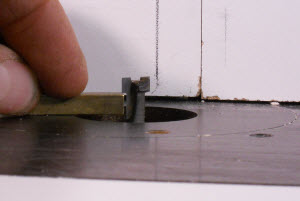

Using a Keyhole BitThe Keyhole Bit. Install the keyhole bit in the router table and set the height of the bit. Don’t move the fence. For 3/4″ stock I set the height of the bit to 1/4″ from the table to the shoulder of the cutter. Set it lower for thinner material.

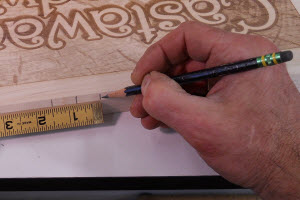

Using a Keyhole BitPrepare the Material. Locate the center of the piece, then measure and mark 3/4″ to each side of the center mark. The two outer lines will be the starting and stopping points of the keyhole cut.

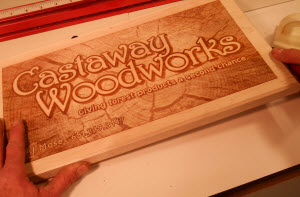

Using a Keyhole BitMaking the Cut. Turn on the router and position the edge of the plaque or frame against the fence, held above the cutter.

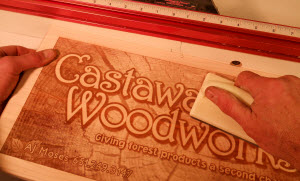

Using a Keyhole Bit Stop when the right layout mark is aligned with the cutter center line.The left layout mark on the plaque should be on the cutter center line.

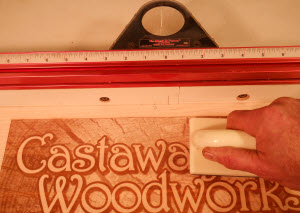

Using a Keyhole BitPlunge the plaque down on to the cutter and move right to left.

Using a Keyhole Bit Stop when the right layout mark is aligned with the cutter center line.

Using a Keyhole BitLift the plaque, pulling the spinning bit through the material.

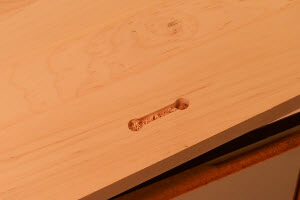

Using a Keyhole BitYou’ve successfully produced a keyhole slot!
