Lie-Nielsen Bronze No. 4 Bench Plane

Reviewing the Lie-Nielsen Bronze No. 4 Bench Plane OK, let’s start with full disclosure; I enjoy hand planing more than almost any other activity in the shop, and I have lusted over Lie-Nielsen hand planes for over a decade, but I haven’t purchased one until now. Why? Two reasons. First, they cost more than most hand planes on the market, and I am thrifty. Second, I get great satisfaction from finding quality hand planes at garage sales and flea markets and tuning them to peak performance. When I do this, my ego wants to believe that the plane will now perform as well as any high-end plane that I could buy, even for 5-10 times as much money, and another part of me is afraid of what I might find if I ever put this theory to the test. Well, Jack Nicholson, I have decided I CAN handle the truth, so let’s find out if a hand plane can be worth $415.

To understand this tool. First, it is essential to understand a bit about Lie-Nielsen Toolworks. In 1981, Tom Lie-Nielsen set out to revive designs of tools that were high quality, practical tools in their day, and even better than many of their modern-day equivalents. Those old tools were still in high demand and were deemed by many to be superior to most currently available. Due to increasing demands of high quantity and low cost, many modern toolmakers manufacture off-shore, using economical materials and highly automated processes. Tom Lie-Nielsen set out to attract the passionate tool enthusiast by building tools locally with only the finest grade materials and handcrafting each device with a small number of artisans, with a level of detail that would match the point within the projects that his discerning customers would make with the tools. Mr. Lie-Nielsen’s strategy has proven viable, as Lie-Nielsen Toolworks has become a recognized icon of high-end, quality hand tools.

Lie-Nielsen manufactures a full range of planes, from block planes through a massive #8 jointer plane. I chose the #4 because I found that size to be the most versatile and the one I reach for the most. I use a #4 for anything from flattening rough stock to flattening a glued panel or flushing a rail/stile joint if I don’t have a block plane handy.

A review of the Lie-Nielson product lineup indicates that some plane bodies are ductile iron (an optimized alloy that offers greater resistance to cracking than traditional cast iron), and some are manganese bronze. This alloy offers superior strength and hardness to brass and softer bronzes. Choosing manganese bronze adds $50 to the price of a #4 plane, so what is the advantage? Manganese bronze is a strong, hard alloy that won’t rust and is even less prone to cracking than ductile iron (both options are superior to traditional cast iron plane bodies, which are notoriously prone to cracking and oxidation), which you will appreciate if you ever drop it on a concrete shop floor. It is also heavier than iron, which I consider a benefit when using a hand plane, as it promotes chatter-free removal of stock. Plus, it’s just plain gorgeous, which I suspect is why many people choose that option.

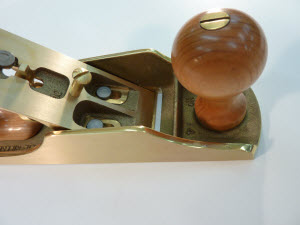

Reviewing the Lie-Nielsen Bronze No. 4 Bench Plane My initial impressions of the #4 plane were around its appearance. It was even more beautiful than it looked on the website. It captures the bold, durable appearance of the Stanley Bedrock planes, which were produced from the 1890s to the 1940s, but with a manganese bronze body and cap iron, as well as several other bronze components, it is even more striking.

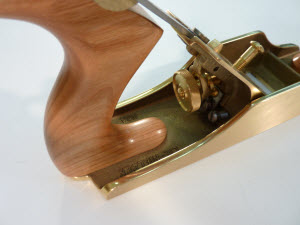

Reviewing the Lie-Nielsen Bronze No. 4 Bench Plane Add to that a cherry handle and knob which have been hand sanded and finished to a lustrous, glowing appearance, and you have a hand plane that is truly a work of art. As I inspected the plane’s outer surfaces, I found no sharp edges (other than the blade!), as everything is gently beveled for comfort. This is due largely to the fact that a human being carefully details each component, and each bench plane is inspected at multiple production points before being packaged for shipment. This significantly contrasts large-scale manufacturing, where random sampling is commonly done to ensure quality for an entire production run.

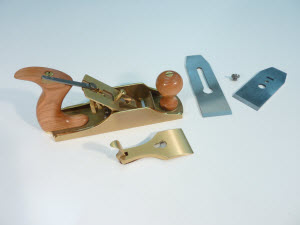

Reviewing the Lie-Nielsen Bronze No. 4 Bench PlaneThen I removed the cutting iron, cap iron, and lever cap to get a closer look, and I marveled at the amazing fit and finish of everything “under the hood.” No slop in any of the moving parts. The fit between the cutting iron and cap iron was perfect, which is critical for consistent clog-free operation. Everything that is supposed to be square is square, and the flat surfaces are dead flat.

Reviewing the Lie-Nielsen Bronze No. 4 Bench PlaneThe cutting iron is a full 1/8″ thick, and it is flattened and honed to perfection out of the box. Most planes sold today require some flattening and sharpening before they can be effectively used, so kudos to Lie-Nielsen for addressing this before shipping. The photo on the left compares the Lie-Nielsen cutting iron to one in a typical plane. The Lie-Nielsen iron is nearly twice as thick, which means a smoother operation and less chatter.

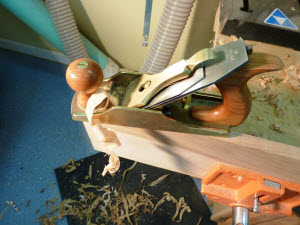

Reviewing the Lie-Nielsen Bronze No. 4 Bench Plane I am not beholden to any object simply for its beauty; especially a woodworking tool. For a tool to earn its place on my bench, it must perform. So next, I put the plane through a few simple tests that I apply to any hand plane I have tuned. First, planing on edge grain. Could I take a long, continuous thin shaving? Yes. No adjustment is necessary; it did this right out of the box. Effortless motion that yields a beautifully translucent shaving so thin that I can’t measure it with my instrumentation. Bravo!

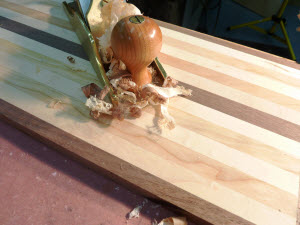

Reviewing the Lie-Nielsen Bronze No. 4 Bench Plane The next test was to plane at an angle across a glued-up panel, which is a common function for a smooth plane. What I am looking for here are two important things. First, do you think the plane can cut through the glue line without any tear-out? Second, can the plane remove stock without leaving noticeable striping on the wood? This drives me crazy on some planes; even after careful tuning and careful beveling of the blade corners, they do not perform well at the second task, and therefore they do not get used much in my shop. The Lie-Nielsen performed superbly at both of these aspects of panel flattening. Effortless planing and a smooth, shiny surface without noticeable striping left behind.

Reviewing the Lie-Nielsen Bronze No. 4 Bench PlaneThe final test; planing figured wood. I picked curly maple, a great challenge and a good litmus test for a hand plane. If there is any slop or vibration in any aspect of the tool, or if the blade is too thin or not sharp enough, the tool will gouge the figured areas of the board. Once again, the Lie-Nielson plane left a smooth and shiny surface and easily passed this test.

Pros and Cons. Everything I have mentioned has been positive. I could not find any significant weaknesses in a meticulous inspection and some basic tests. I have heard that in some cases, as the bronze-bodied plane age, it will leave some coloration on the wood if the plane is not used regularly. This condition can be remedied by regular or periodic buffing and waxing. Other than that, the only downside is the hefty price tag. However, given the workmanship and high-quality materials, I cannot debate that the plane is priced fairly at $415. I would want Lie-Nielsen Toolworks to refrain from taking any of the classic, short-sighted, spreadsheet-driven moves to reduce the cost of their tools. I hope they stay true to their high standards, using only high-quality materials and employing an American artisan workforce. There are many other hand-plane options out there for the bargain hunter.

Recommendation. Only you can answer whether this tool is worth $415, but I can confidently say that this is the finest hand tool I have ever held. It is superior in quality and surpasses in performance, every classic hand plane in my collection. It performed flawlessly in all three tests; edge planing, panel flattening, and figured wood planing. You will be satisfied if you want the best and can justify the cost.

Photos By Author


Item #4B, No. 4 Bench Plane, Bronze $415

Lie Nielsen Toolworks
